My Thought Process

Following my role as an instructor in the Ken Garff Esports Summer Tech Track—I continued to mentor an outstanding student who showed exceptional curiosity in the cybersecurity field.

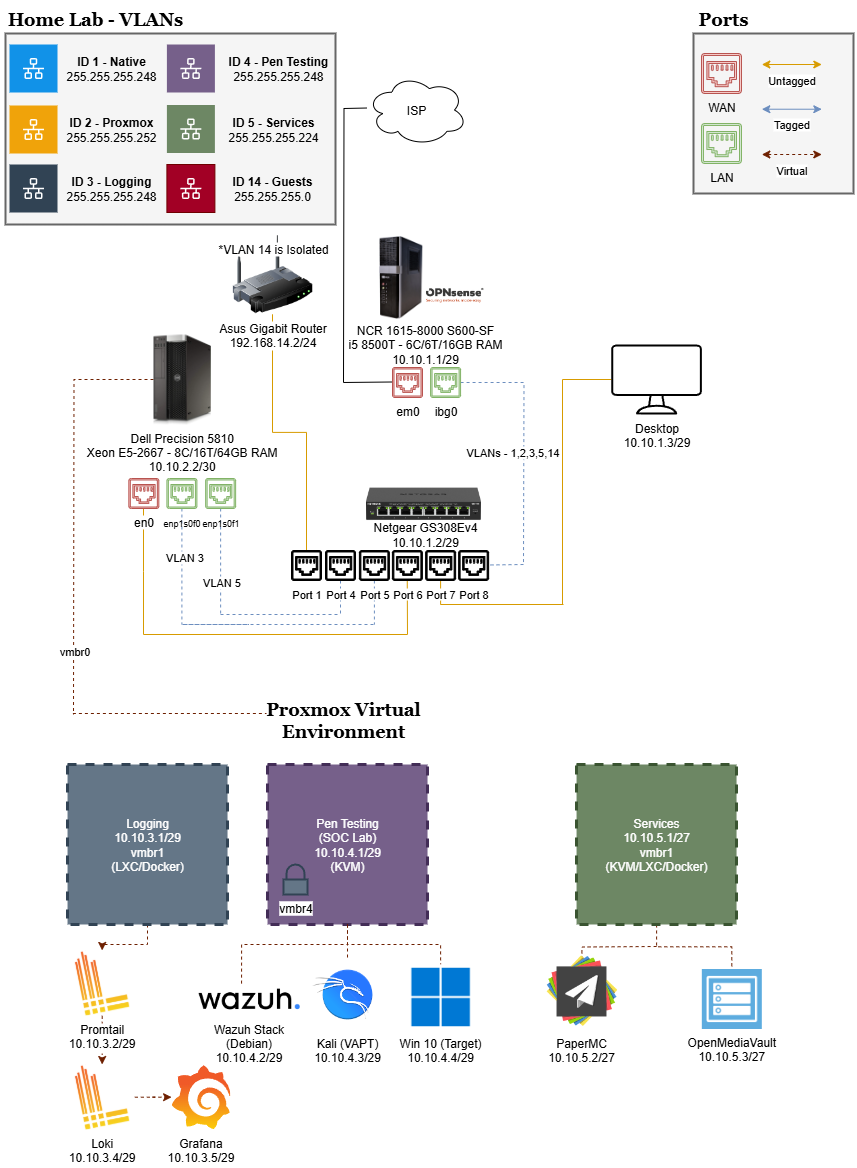

To further his learning, I designed and implemented a home lab tailored around a loosely inspired real-world enterprise environment.

Network Infrastructure

Subnetting

I chose not to implement a flat /24 network as it is inherently insecure for almost any sort of network—especially for exposed services.

I decided to keep subnet assignments tight and centered around a usable pool that heavily prevents lateral movement—ensuring a security-first mindset.

/29 was used for the native VLAN (VLAN 1)—primarily due to it being the trusted subnet and making troubleshooting far easier; I thought that it was far more appropriate for his needs.

VLAN 2 is on a /30 subnet, which limits potential attack surface, and is solely for the Proxmox management interface.

VLAN 3 needs little to no usable hosts because it is intended only for logging services.

VLAN 5 is far more generous with a /27 subnet, which would be best for tightening and expandability.

Segmenting services would’ve been best, but again—this setup needs to be accessible for independent troubleshooting.

With that in mind, DHCP is enabled on VLAN 1 in case his network configuration interferes with deliverability; my mentee has three “free” untagged ports on VLAN 1 for troubleshooting purposes.

My mentee has a keen interest in penetration testing, so I integrated a SOC lab into his home lab for learning purposes.

It is entirely virtual, isolated on to vmbr4 with no physical network integration; this VLAN is fully air gapped.

Network Hardware

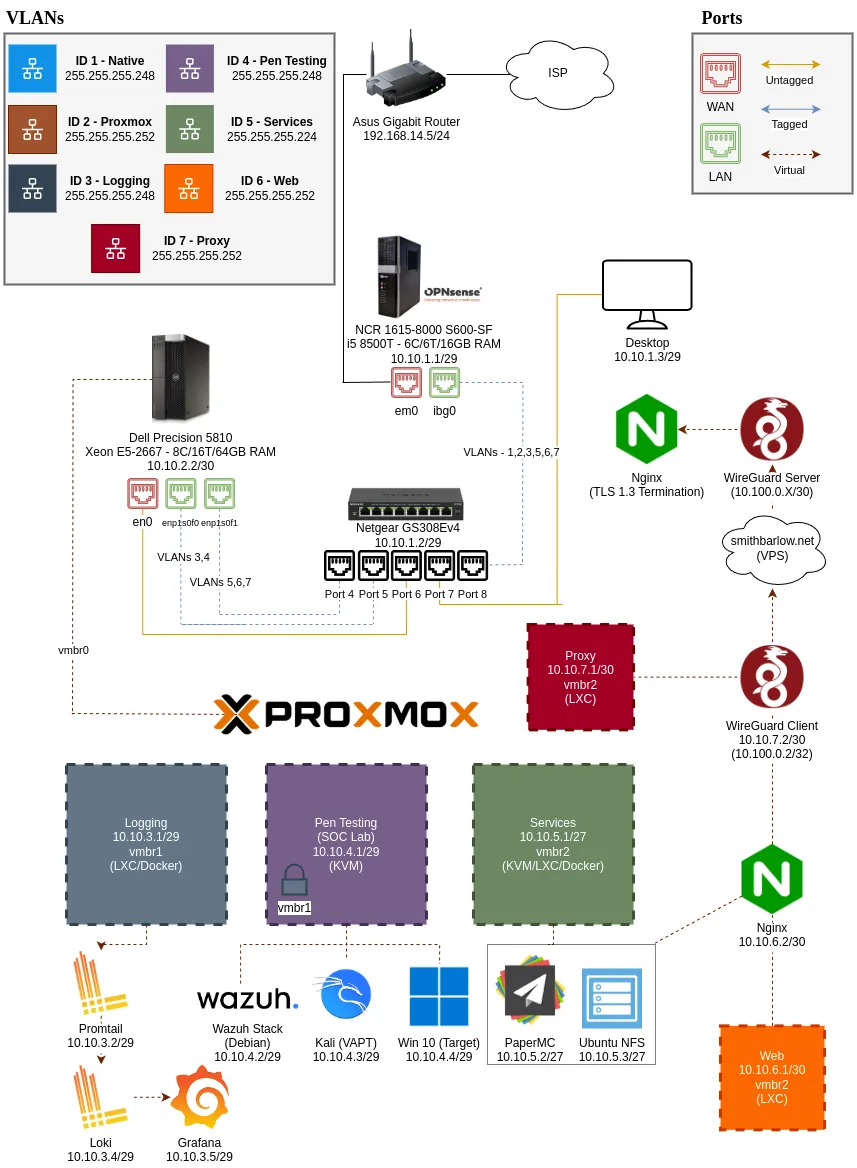

OPNsense was used as a central router/firewall with extensive ACLs to prevent unnecessary inter-VLAN traffic and exposure.

I found it very beginner-friendly while exposing my mentee to real-world toolsets.

A simple Netgear gigabit managed switch (GS308Ev4) was used to establish trunk ports between OPNsense and his Proxmox “outputs.”

Three trunk ports were utilized for carrying traffic out of his Proxmox node: an upstream trunk for VLANs (ibg0) 1, 2, 3, and 5, and two independent ports (enp1sfp0 and enp1sfp1) for VLANs 3 and 5.

A dummy PVID of 4094 was used for untagged traffic on the three trunk ports—limiting potential traffic errors/security risks.

Every other port—including the Proxmox management interface—was kept untagged.

Virtualization

I cannot state how asinine it is to run everything on bare metal—a mistake I see far too frequently in student-led home labs.

It makes management/expansion an absolute headache and leaves every process on a “level playing field”—severely increasing potential attack surface.

With that in mind, I opted for Proxmox, an open-source competitor to VMware’s ESXi platform—offering an enterprise experience without VMware’s absurd licensing fees.

Linux bridges were created to match each trunk port and were tagged appropriately within Proxmox.

Linux Bridges

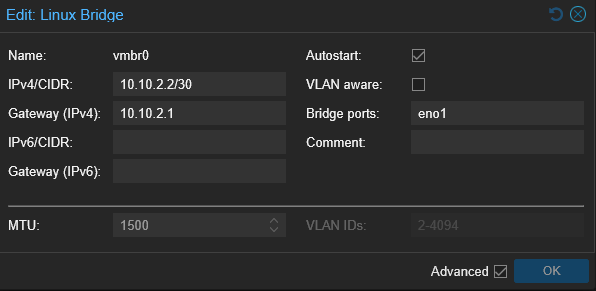

vmbr0 is native to Proxmox (VLAN 2)—untagged and purposefully not VLAN aware.

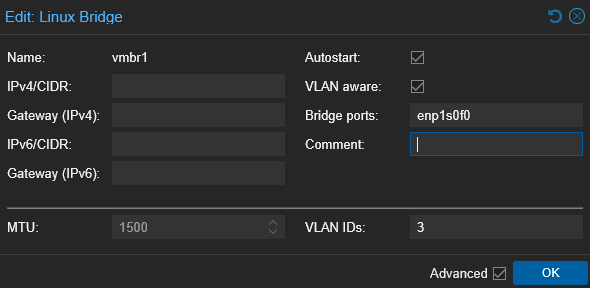

vmbr1 is for logging purposes (VLAN 3).

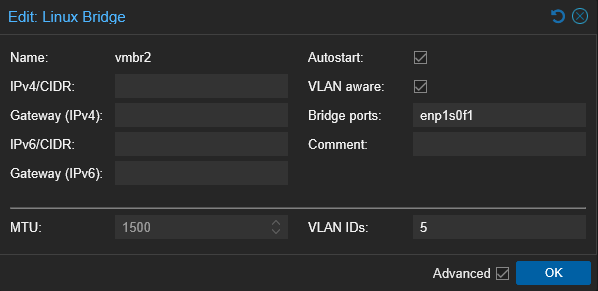

vmbr2 is used for self-hosted services (VLAN 5).

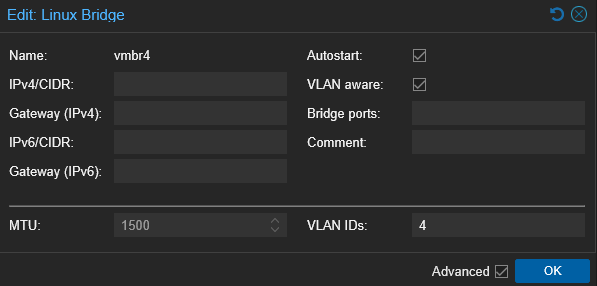

vmbr4 is for internal use only (VLAN 4).

Implementing Virtual Machines

For most home labs, I would implement a hardened frontend reverse proxy—though for his setup, it’s largely unnecessary (for now).

The lab mostly consists of LXC containers and KVM virtual machines—as most services would be inoperable/inefficient if using Docker containers.

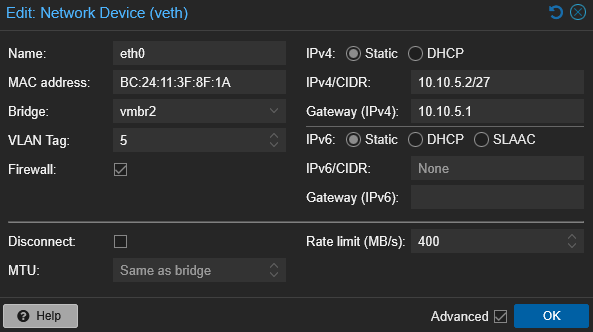

Each machine is manually assigned an IP address to avoid unnecessary DHCP servers running on each VLAN interface.

VLAN tagging also occurs on each virtual network interface—his PaperMC server, as noted above, is rate limited to avoid exhausting his network; granted his hardware is more than capable, I found it to be highly important.

Future Plans

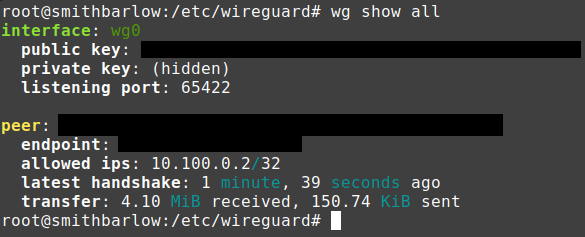

Eventually, we will tunnel all relevant traffic through a WireGuard server hosted on the cloud so his services are masked.

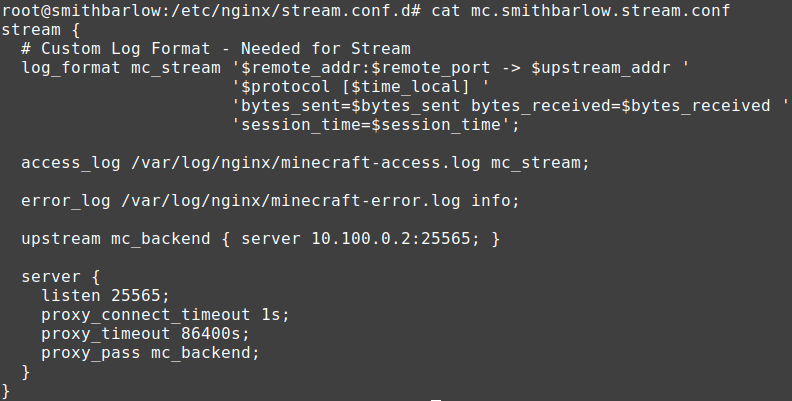

Likely two hardened Nginx reverse proxies on each end—with TLS 1.3 termination on the VPS

For now, the only service that is exposed is his PaperMC instance (on a nonstandard port of 65555)—though that will likely expand given his needs will increase.

OpenMediaVault will likely remain for internal use only, although Nextcloud may replace that in the future (tunneled).

Documentation

I want to stress that this was co-designed with my mentee, and he was actively involved in this process.

I am extremely proud of his performance and technical aptitude in implementing/maintaining this home lab.

Extensive documentation, including interface configs, switch configs, ACLs, and Proxmox scripts/configs, may be found here or at smithbarlow.xyz.
